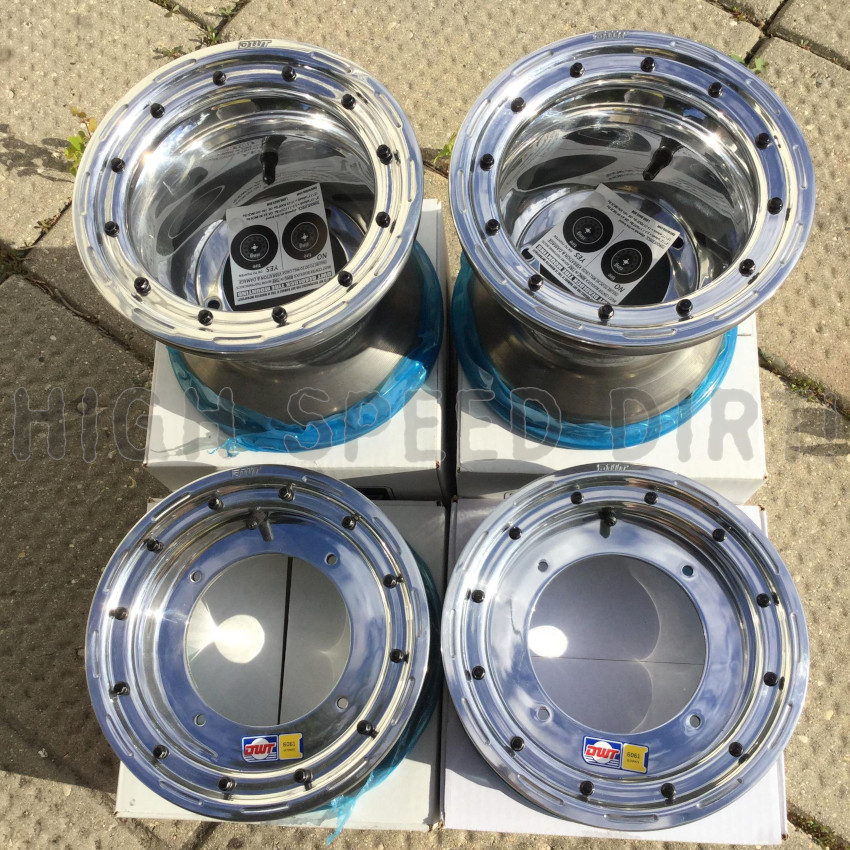

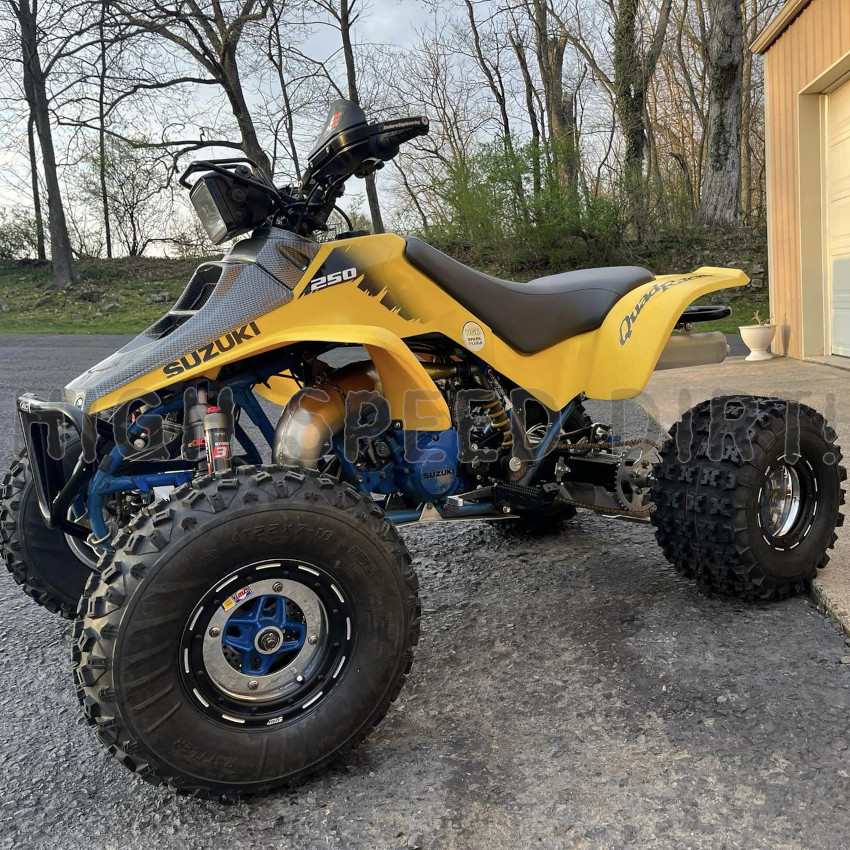

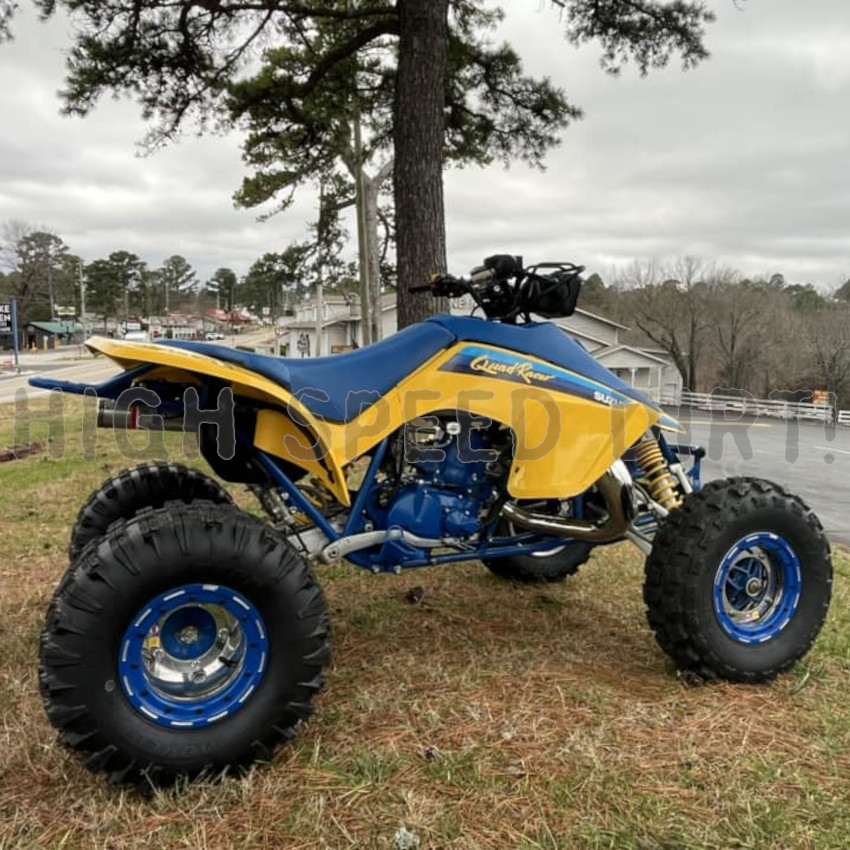

Beadlock Wheel Set 10x4 3+1 4/166 9x8 3+5 5/130 DWT LT500 LT250R LT230

SKU: LT500-LT250R-DWT-10498-SBL-SET
Our Price US$788.46
US$829.95
You Save 5%

• Fronts In stock, rears in production ETA April 2024
• If you don't see the "Add To Cart" button please phone order desk 888-801-8960

Add to Wishlist

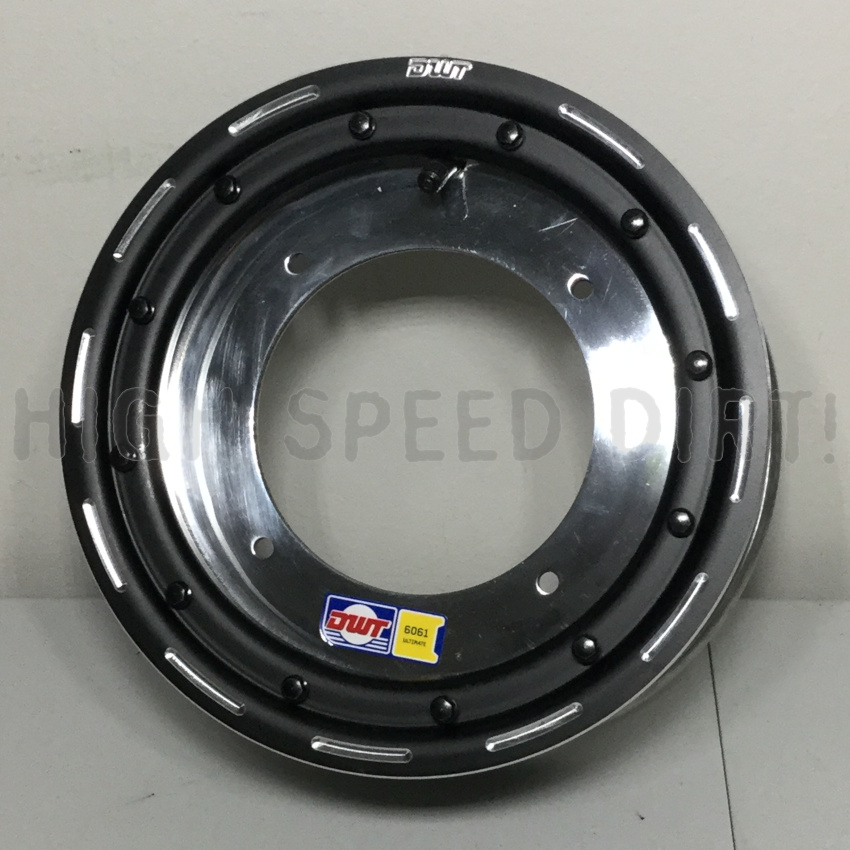

LT500 LT250R DWT Beadlock Set 10x4 9x8

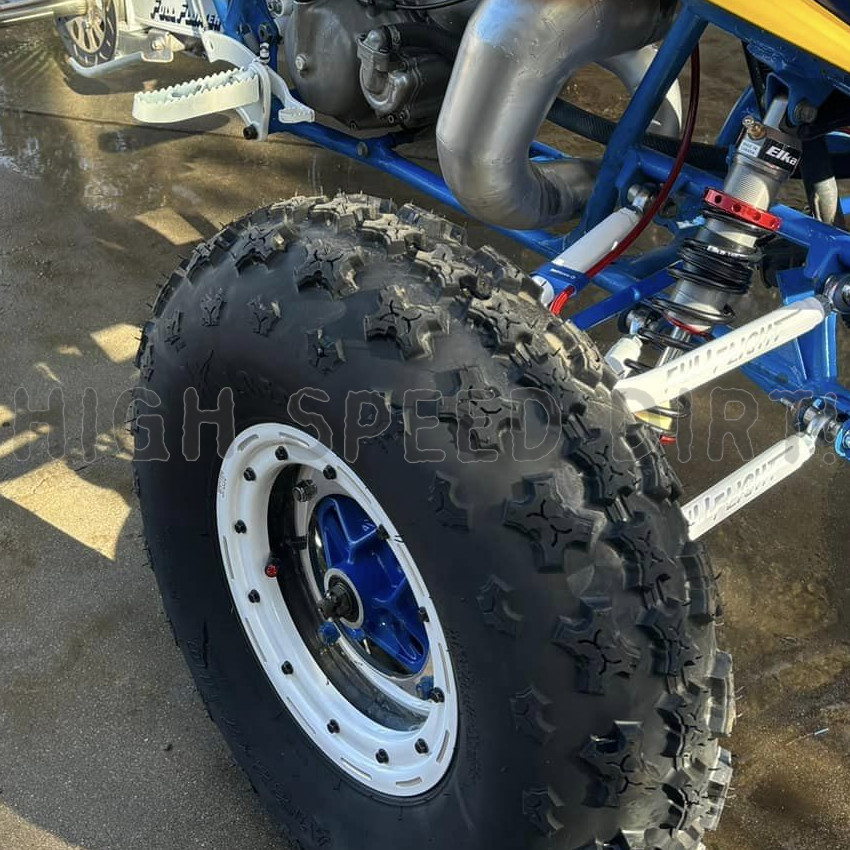

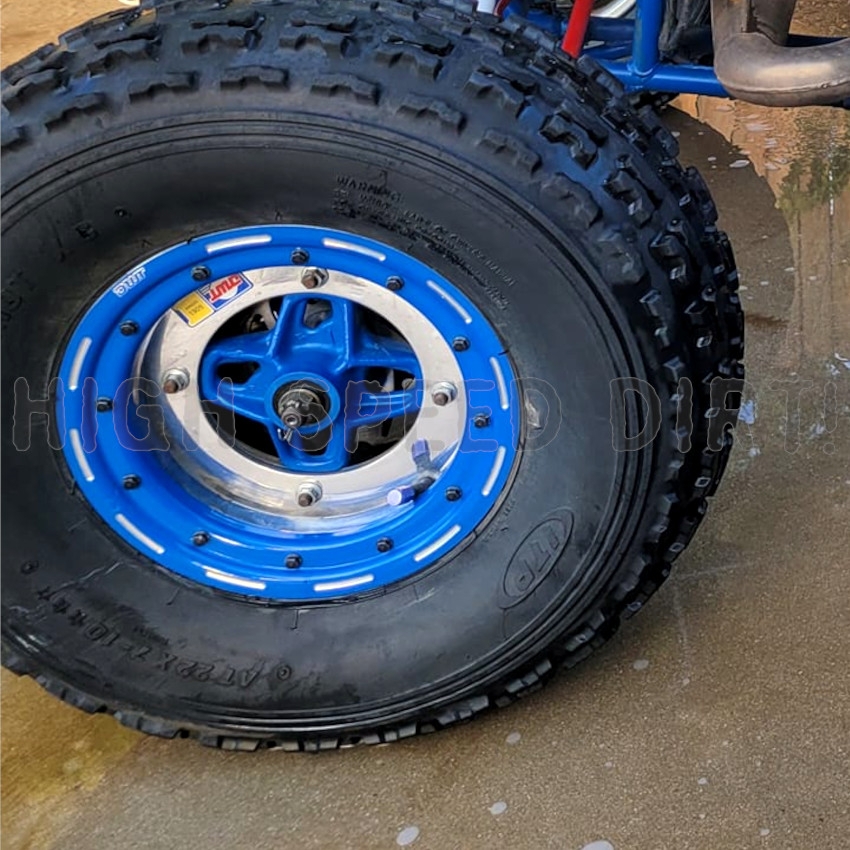

Fronts
• Performance Offset of 1 inch for more precise steering, less feedback into handlebars, less stress on spindles, tie rods, tie rod ends & steering stem. (stock offset is 2")
• The 1" offset shifts the tire contact patch inward to correct the scrub radius.
• The Performance offset is 1" narrower than the stock offset and allows for the use of 1" wider a-arms that will add more wheel travel while maintaining stock overall width.
• Fits onto your stock front hubs. Wheel has the stock 4/166 bolt pattern and 8mm holes so you don't need to buy billet hubs.

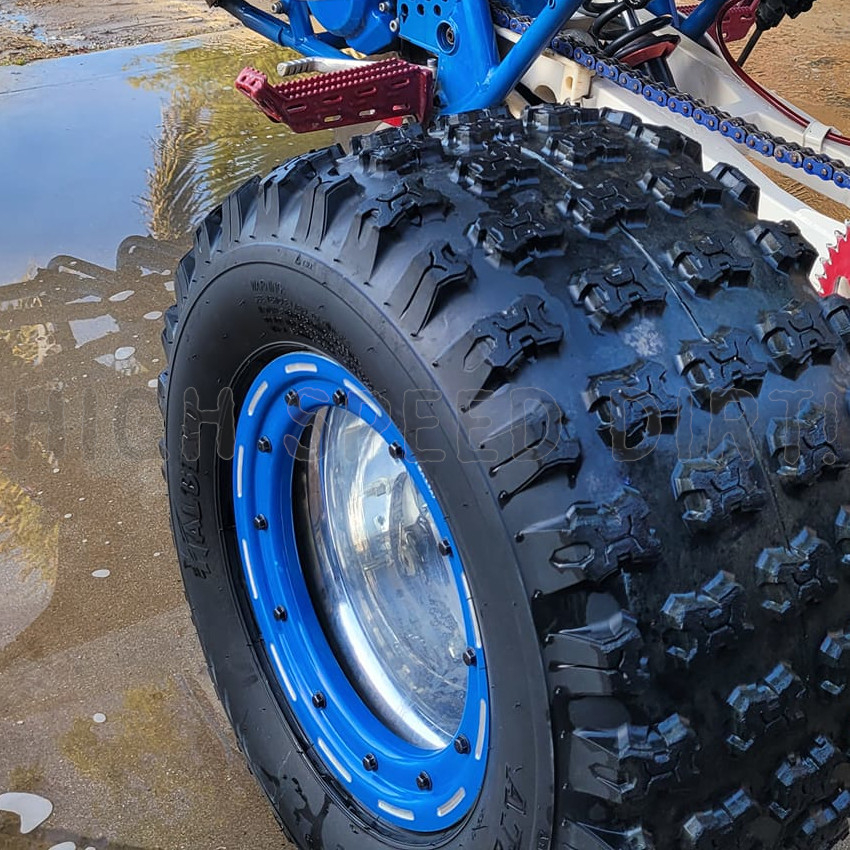

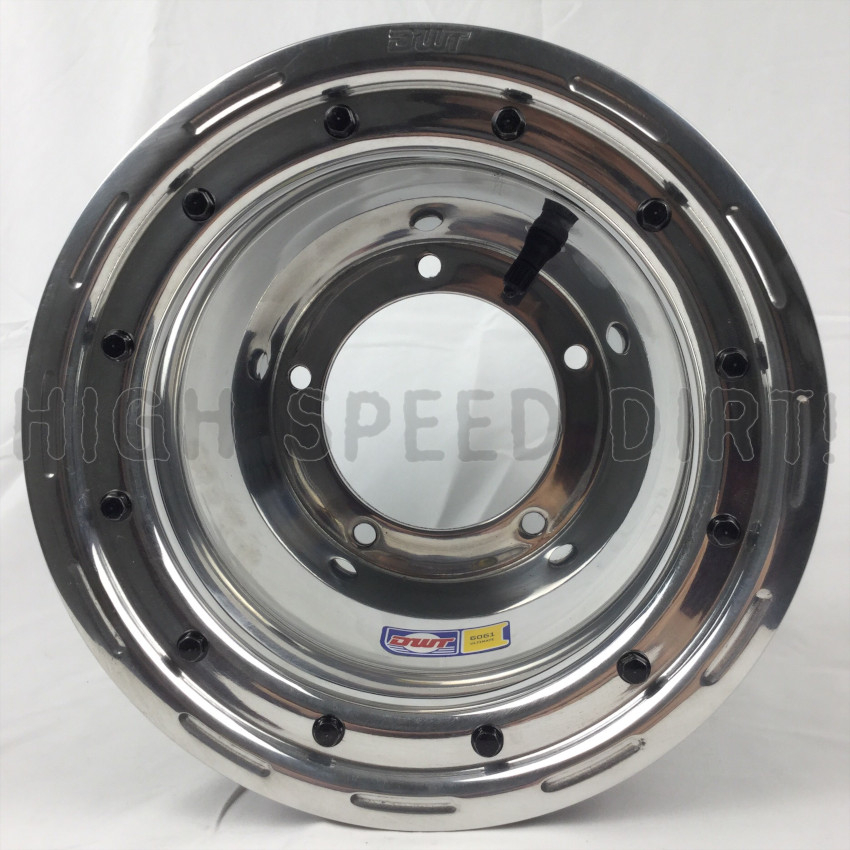

Rears
 • Fits onto your stock rear hubs. Wheel has the stock 5/130 bolt pattern and 10mm holes so you don't need to buy billet hubs.

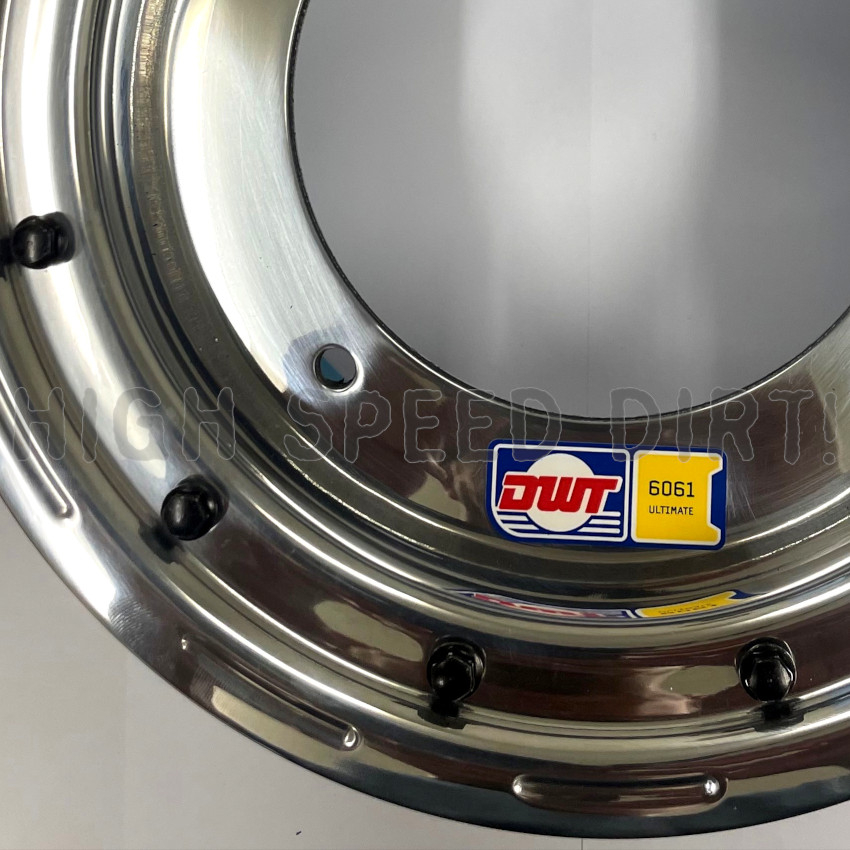

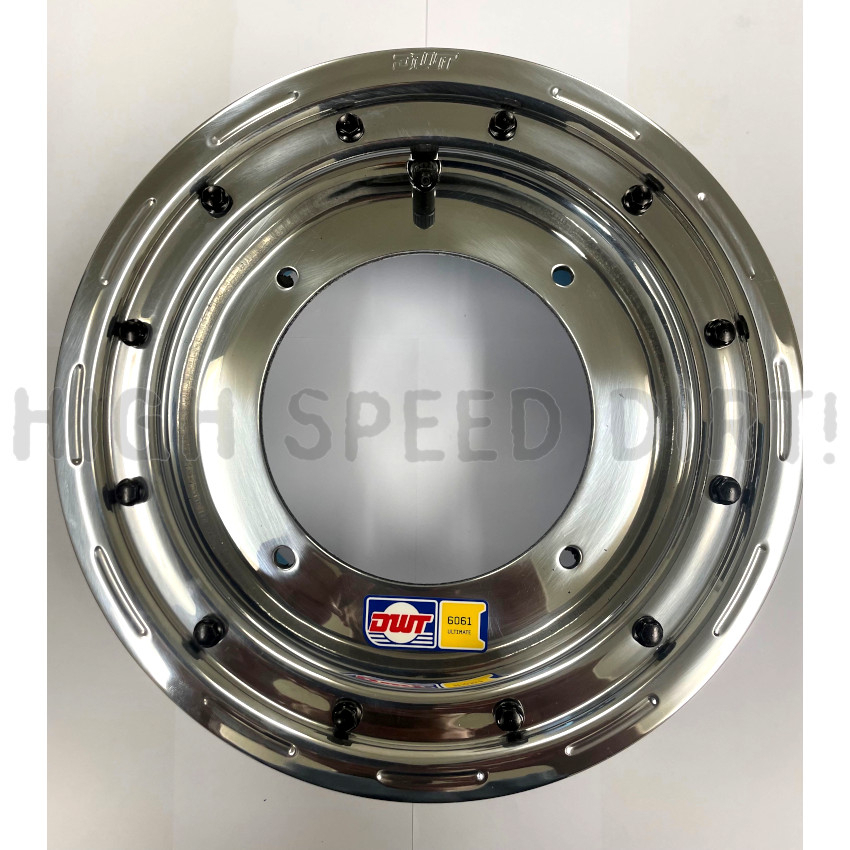

• Roll forged from .190/.160 thick, 6061 heat treated aircraft grade aluminum in the DWT factory, the wheels are a true testament to American craftsmanship. A proprietary heat treating process assures the wheel is hard yet still durable.

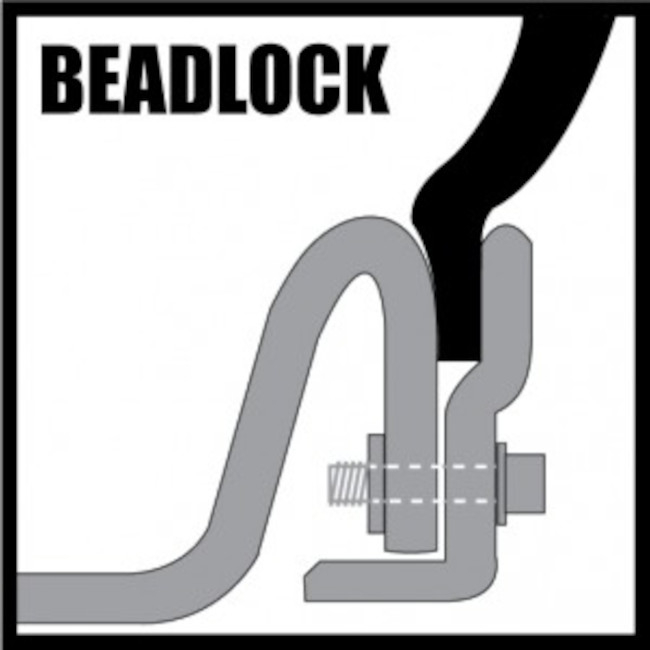

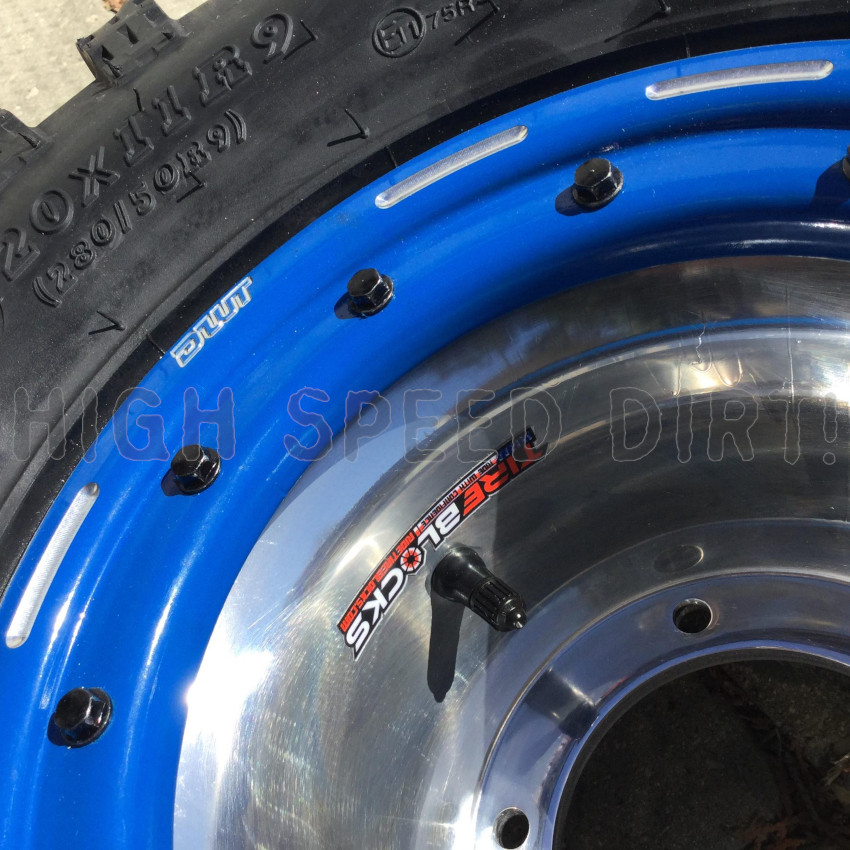

• Beadlock Rings available in 3 versions. DWT Aluminum, GPS Aluminum and GPS Carbon Rings. This variety allows to pair your performance offset front beadlocks with matching rear G3 beadlocks by DWT or Victory Lock beadlocks by GPS.

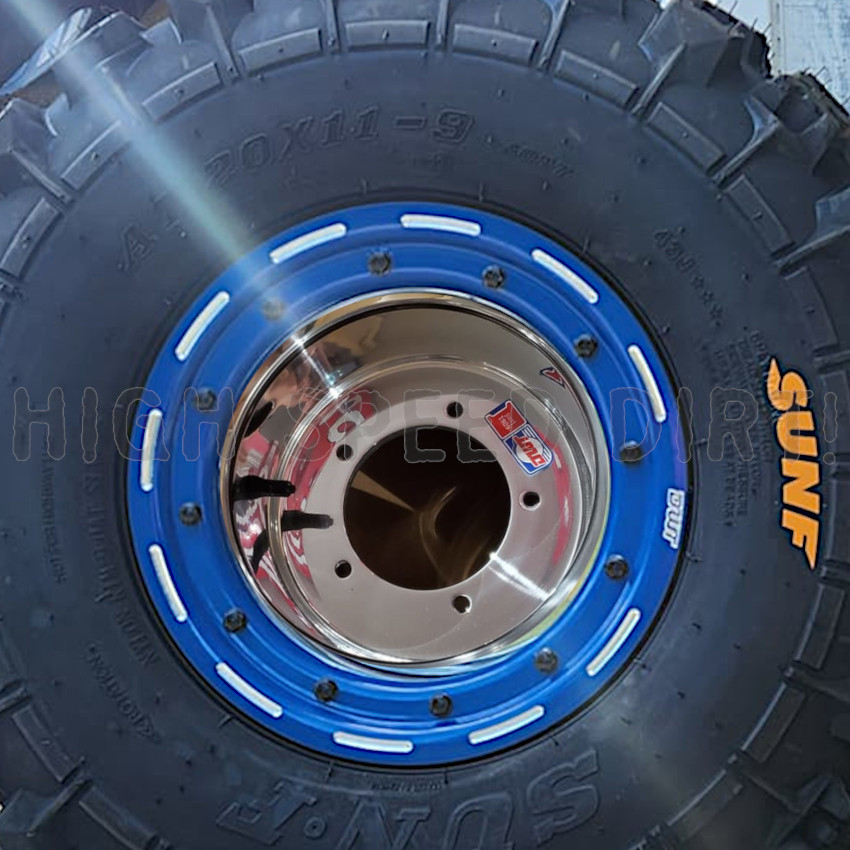

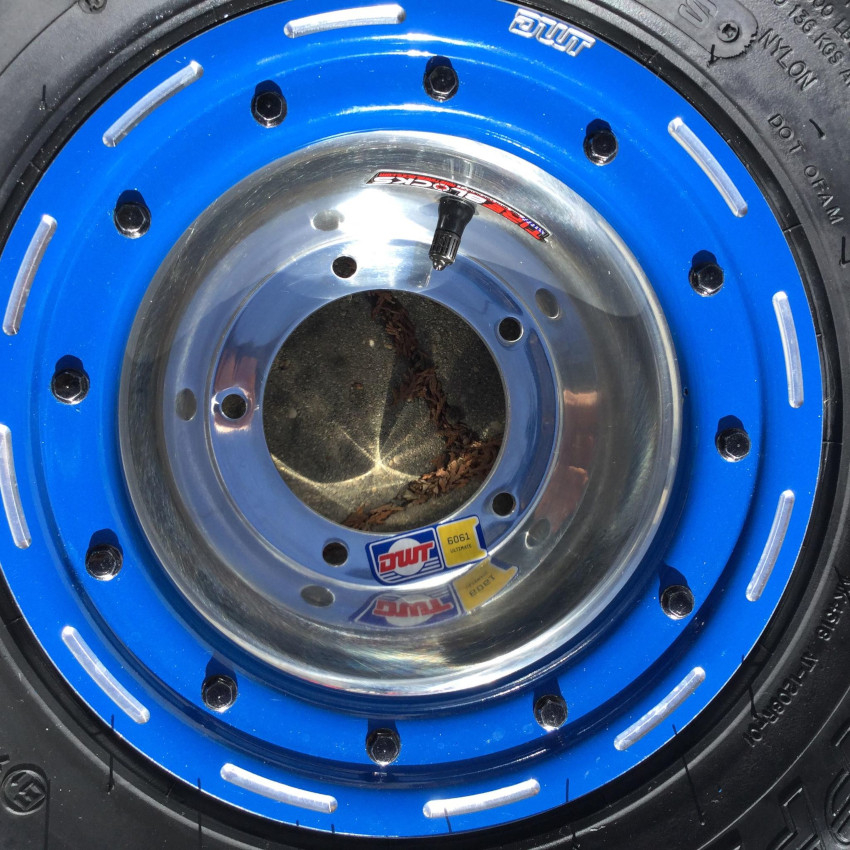

• DWT Rings have the highlighted pockets in 9 finishes. GPS Aluminum Rings come in 9 finishes and GPS carbon rings come in 6 colors.
• Pre-installed Valve Stems

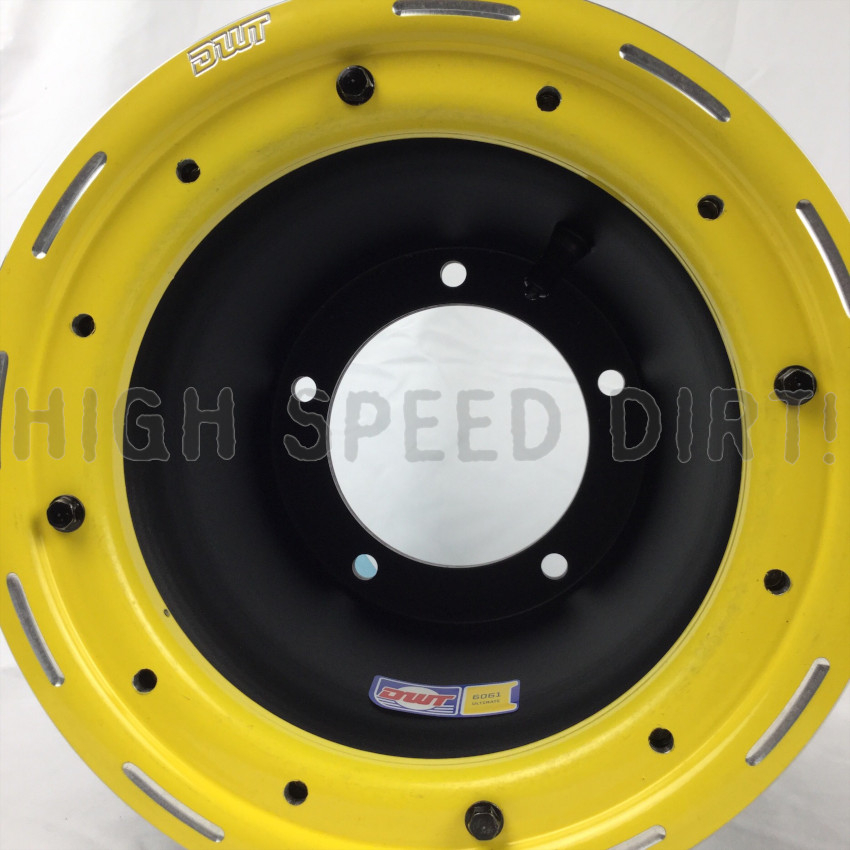

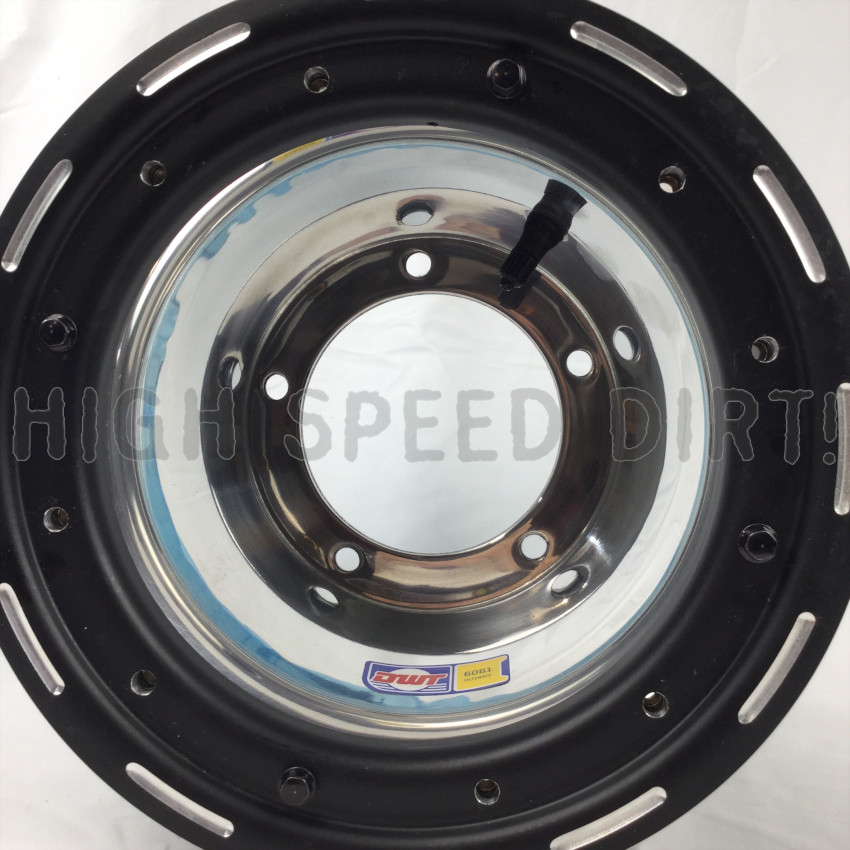

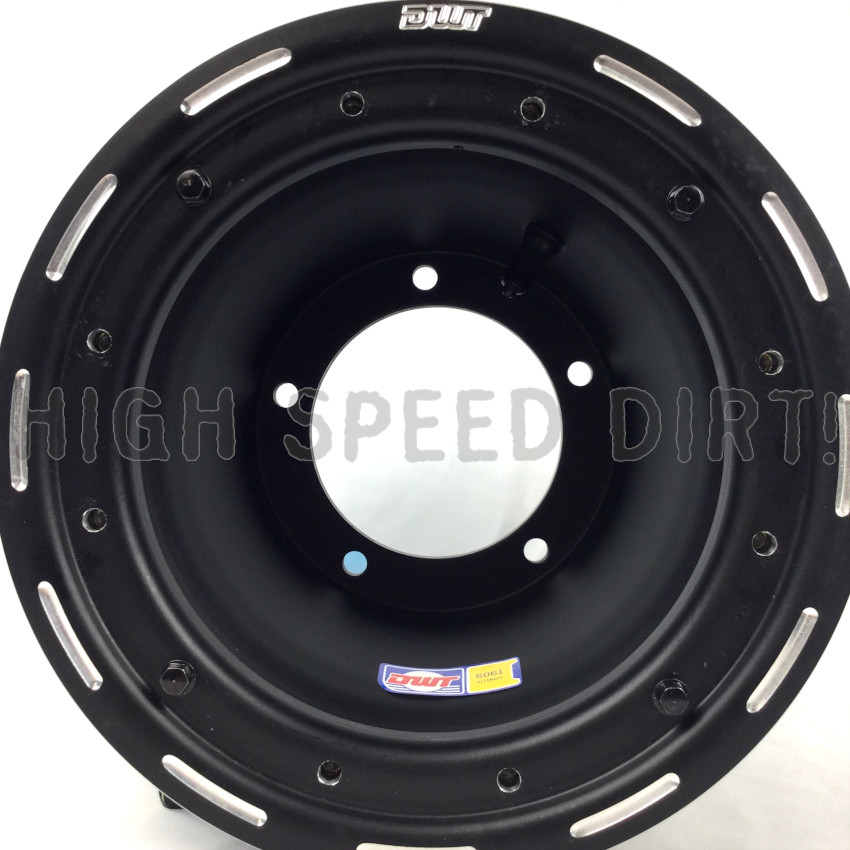

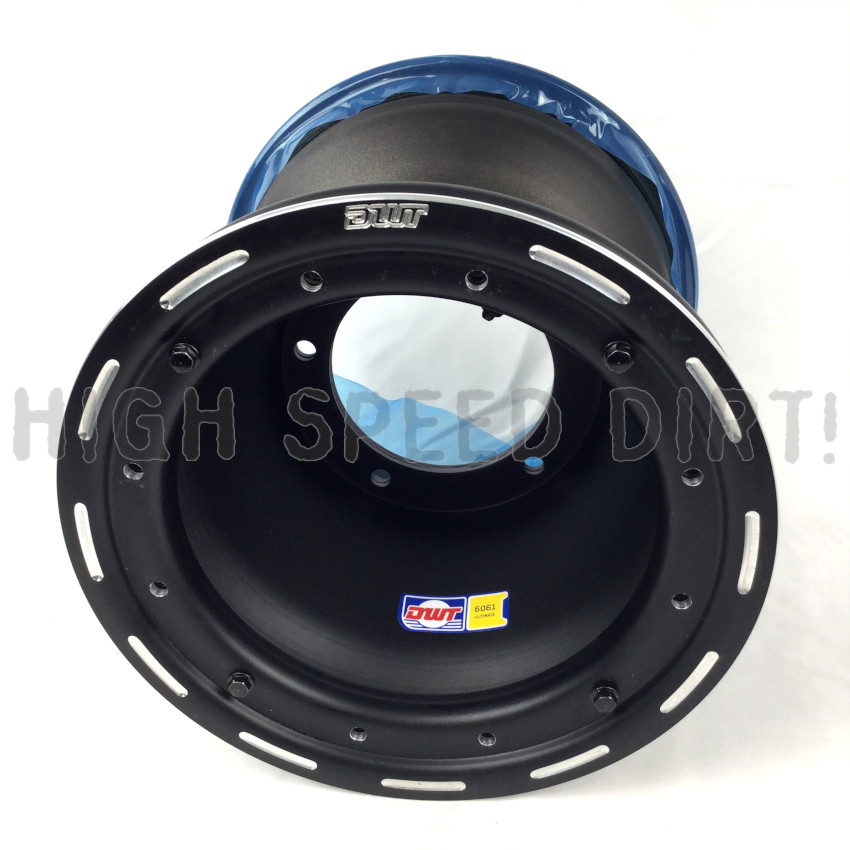

• Polished Aluminum Finish wheel or Matte Black powder coat wheel
• Black Zinc Finish Hardware
• Made in the U.S.A.

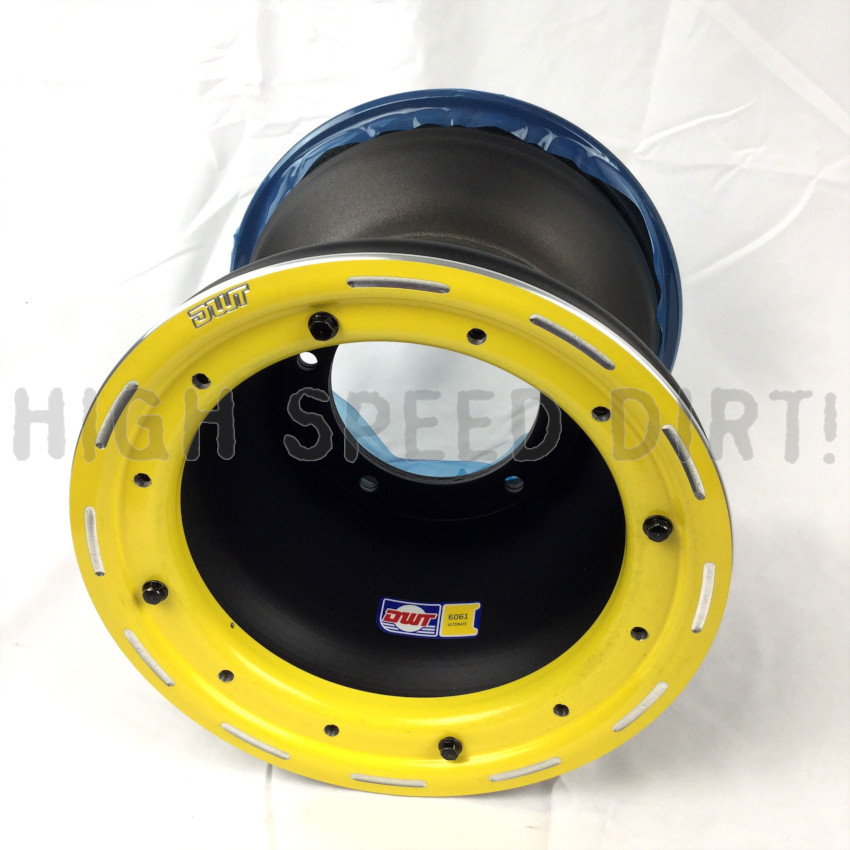

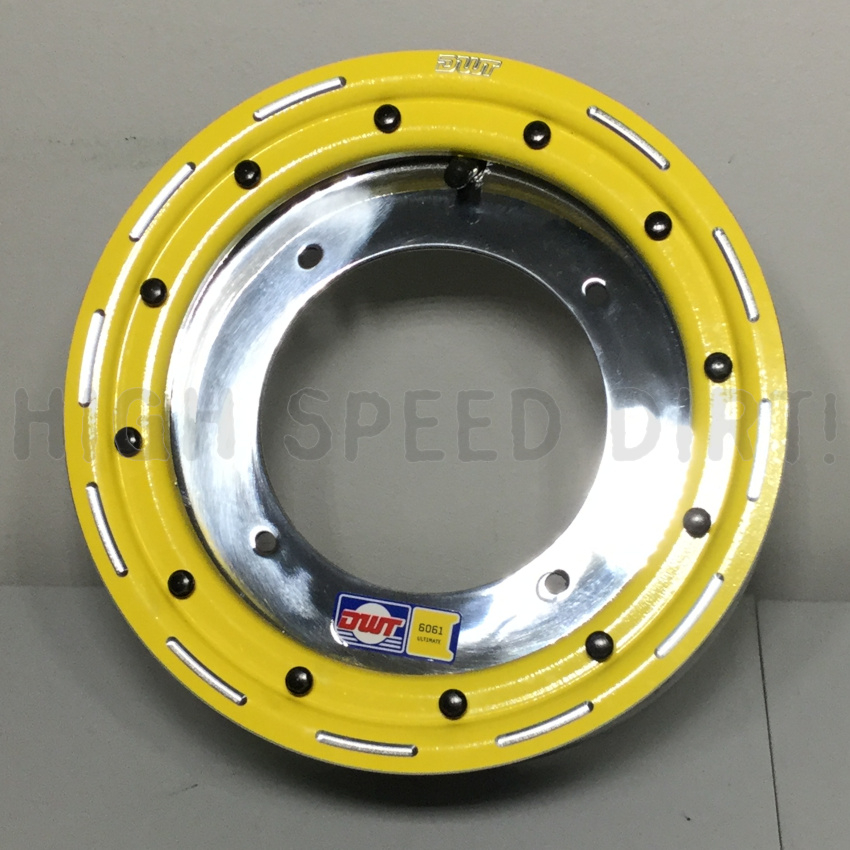

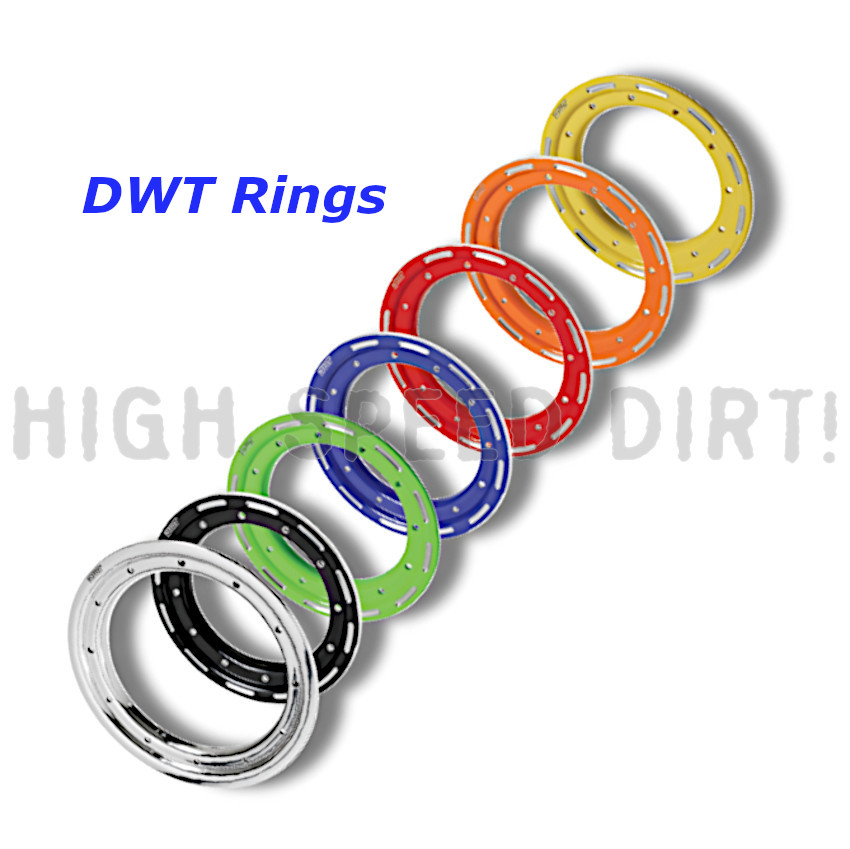

• DWT Ring Colors
Blue
Green
Orange
Polished
Red
Shot Peened
White
Yellow

• GPS Aluminum Ring Finishes
Sandblasted
Black
Blue
Green
Orange
Pink
Red
White
Yellow

• GPS Carbon Ring Colors
Black
Blue
Green
Orange
Red
Yellow
Fronts
• 10x4 (Diameter x Width)
• 3+1 (3" Inner + 1" Outer) Performance Offset
• 4/166 Bolt pattern
• 8mm lug holes

Tire sizes that use a 10x4 wheel
18x6-10
18x7-10
19x6-10
19x7-10
20x7-10
21x7-10
22x7-10
23x7-10


Rears
• 9x8 (Diameter x Width)
• 3+5 (3" Inner + 5" Outer)
• 5/130 Bolt pattern
• 10mm lug holes

Tire sizes that use a 9x8 wheel
18x10-9
18x11-9
20x10-9
20x11-9
22x10-9
22x11-9
